Result Summary

The overall decision of the CPX-900 is based on the combined result of the cranking and reserve heath testing. A failure during either testing results in a Replace battery result

See attachment “CPX-900 Result Examples” to see examples of how the individual testing decision affects the overall decision

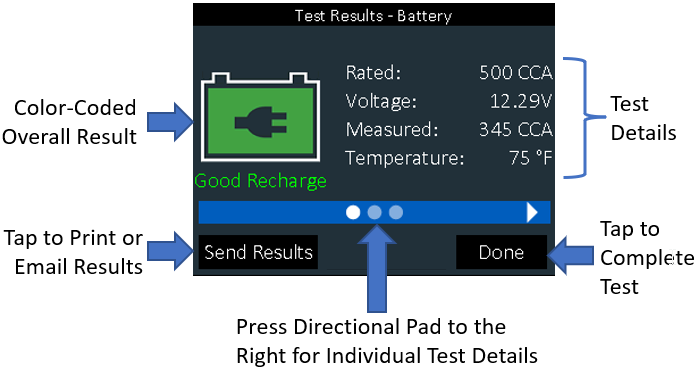

Overall Decision

___________________________________________________________________________________

Use the directional pad to scroll to the right and review the Cranking and Reserve Capacity results

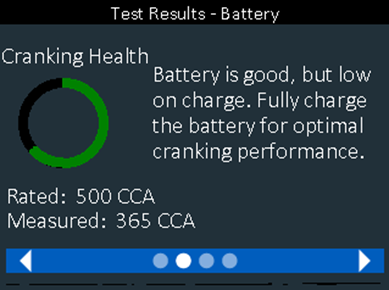

Cranking Result

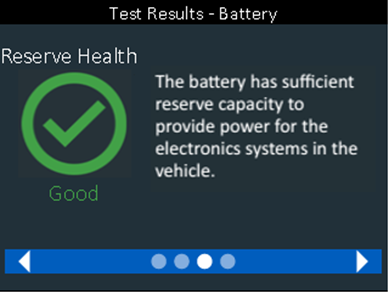

Reserve Capacity Result

___________________________________________________________________________________

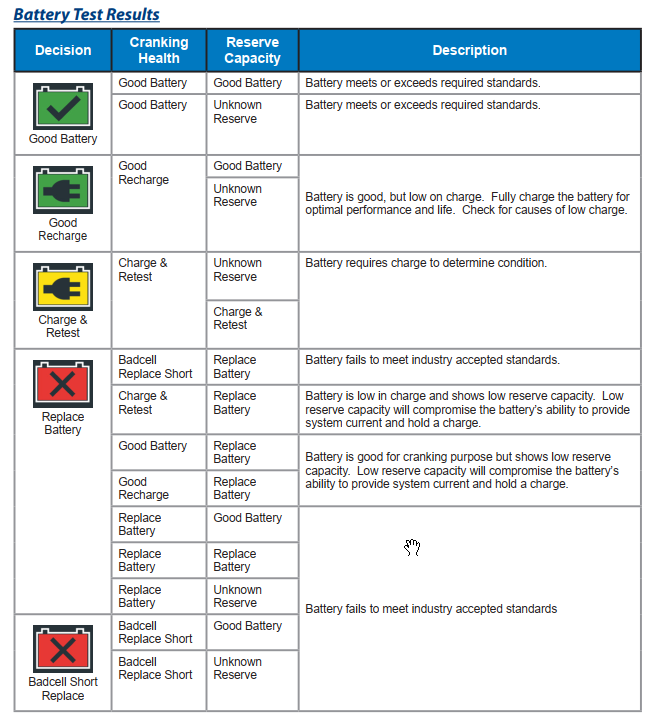

TEST RESULT DECISION TABLE
